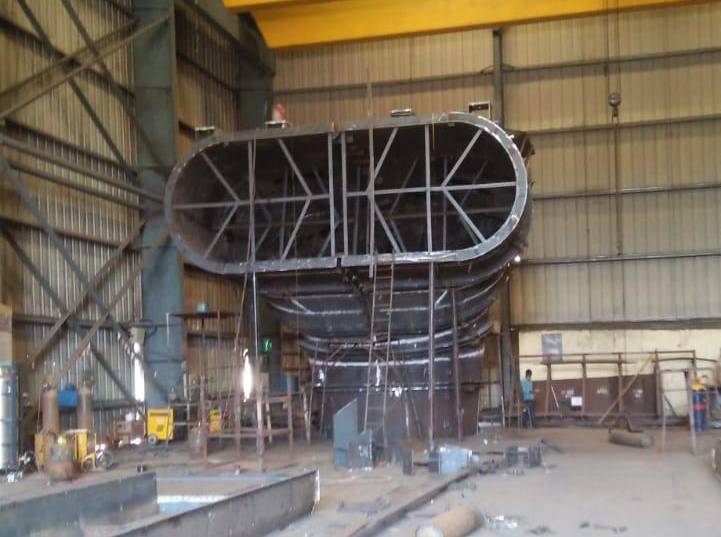

We have manufactured Draft Tube Liners: 4 sets with 22.5 meters in diameter and 80 MT in weight.
We have qualified welders who can weld plates up to 200 mm in thickness used in manufacturing equipment like Top Covers

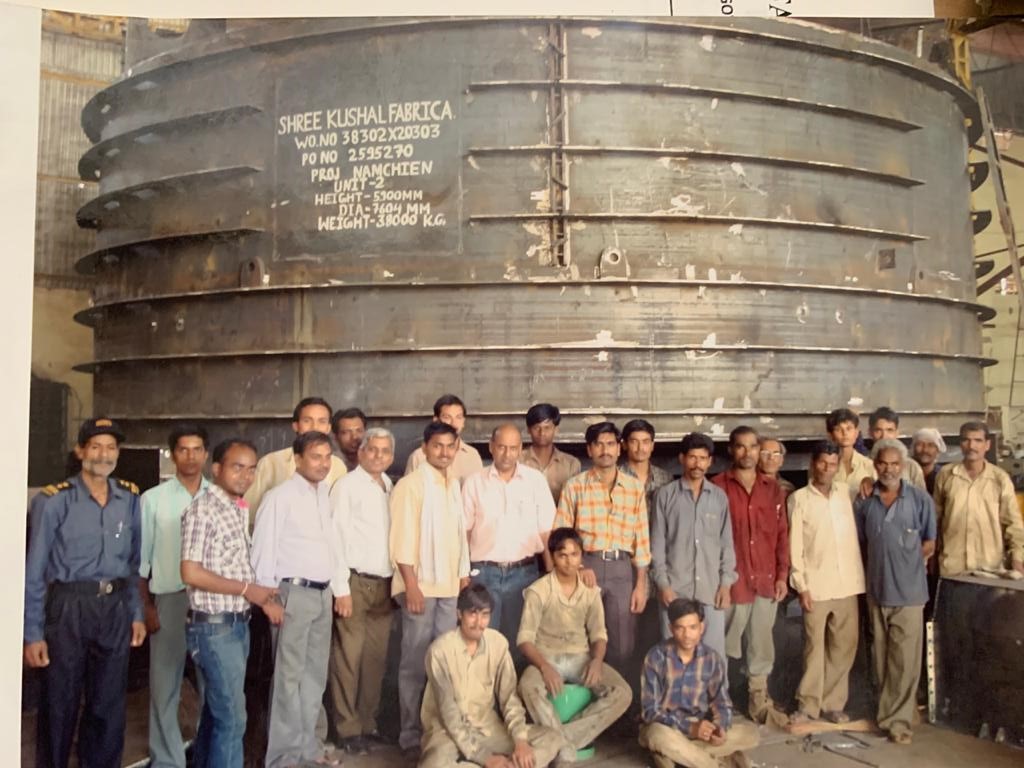

We have produced turbine housing of 7 meters in diameter.
The Runner Envelope is manufactured with alternate layers of high tensile steel and stainless steel. The Stay Ring uses casting steel and high tensile steel. We specialize in fabricating various types of steel to meet the technical specifications and design requirements.
We have executed heavy-duty fabrication jobs ranging up to 40 MT for equipment like Pivot Ring, Regulating Ring and Top & Bottom Brackets.
100% Radiographic Welding Tested Jobs: We have completed projects such as the Air and Pressure Receivers. These jobs have been 100% radiographically tested.
We have executed highly complex projects such as the Draft Tube Liner, Spiral Casing and Stay Ring which require expertise both in fabrication as well as assembly.

A few successfully executed hydro power project equipments -

NAME OF EQUIPMENT	HYDRO POWER GENERATION PROJECT
Draft tube liner	Polavaram HEP, Shahpurkandi

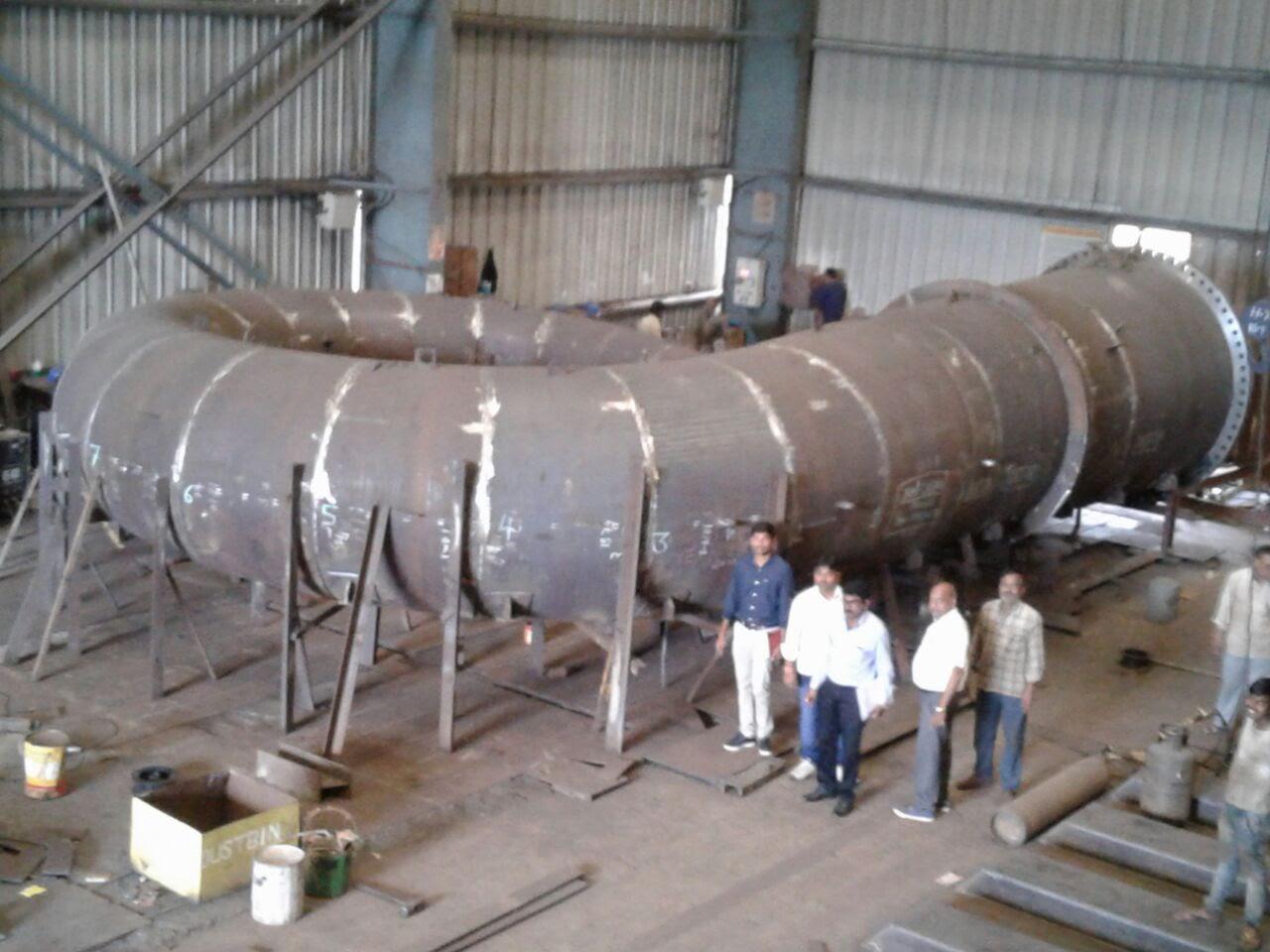

Spiral Casing	Shahpurkandi
Stay Ring	Nethampad, Palamuru Rangareddy
Presure Receiver	Hasdeobango, Bansager, Ghatprabha, Sungaipia, Kodasalli, Srisailam, Almati, Kuttiyadi, Allain Duhagan, Sewa, PRLIS STG-3
Top Bracket	Bansager, Nethampad, Sriramsagar, Teesta
PP Set	Ghatprabha, UVDC, Kadra, Dhudhganga
Pivot Ring	Lower Periyak, Kadra, SS Canal, Kodasalli, Gerusappa, Indrasager, Nethampad, Maheshwar, Nagarjunagasar, Nagarjunasager, Teesta Low Dam, Shahpurkandi
Air Receiver	Sungaipia, Sewa, Prabati, Allain Duhagan, Sriramsagar, Kodayar
Regulating Ring	Lower Periyak, Nethampad, Koldam
Bottom Bracket Center Assembly	Turial
Runner Envelope	Indrasagar, Nagarjunasagar
Top Cover	Sriramsagar, Srinagar, Maheswar, Teesta Low Dam, Arun, Shahpurkandi
Turbine Housing	Nethampad
Stator Frames	KLIS L4 P2, Kaleshwaram

Painting booth with heaters : ⁠size as 8 meters width x 13 meters depth and 7.3 meters heigh

⁠Shot blasting chamber : ⁠ size as 8 meters width x 12.5 meters length and x 8.5 meters height , Advanced Air suction systems in built

Plasma with 20 mm and oxy fuel upto 200 mm capacity
